Our twin-screw extruder offer reliability in the most demanding jobs such as the extrusion of plastics with high percentages of fillers, reinforcing fibers, or with heat sensitive or shear sensitive additives.

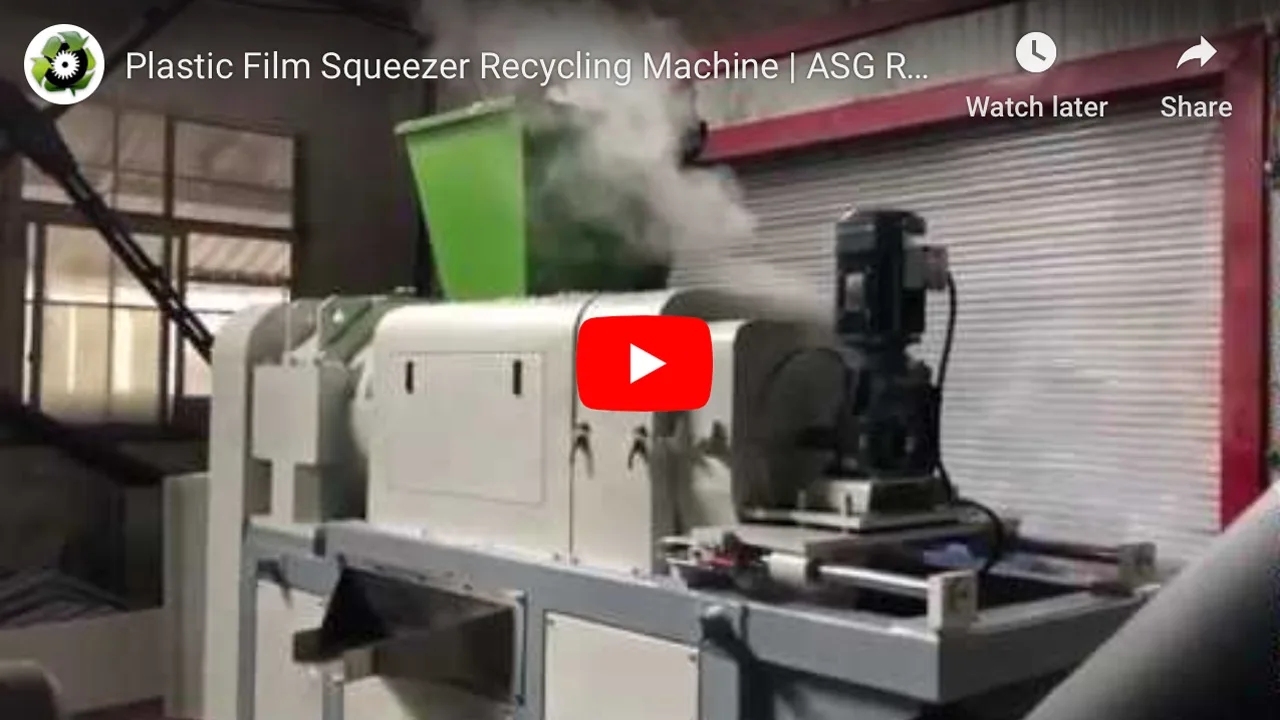

Our screw-press squeezer and densifier is a low power consumption, high output system capable of reducing moisture content of washed plastic films to approximately 3 percent.
Our advance eddy current separators (ECS) provide superior non-ferrous metals removal in recycled PET bottle and other regrind recycling applications.
Our eddy current separators are key pieces of machinery for separating aluminum & other non-ferrous metals from a variety of process streams.
Our single-shaft plastic shredder machines are extremely robust and powerful machines capable of efficiently shredding a wide range of material including plastic, wood, paper, textile, tires, packaging, biomass, and more.
Our double-shaft shredders are heavy-duty, low-speed, high-torque machines used primarily to "pre-cut" large volumes of bulky plastic materials.
A highly efficient, yet low energy consuming piece of drying equipment, the dewatering machine uses centrifugal force to partially remove water from a flowing stream of plastic material.
Specially designed for our plastic film and PET washing lines, our thermal dryer is an excellent way to remove moisture through dehydration.
Our vacuum dryer system is optimized to increase the intrinsic viscosity of PET pellets during the drying process.
Description
Melt-blown fabric is the “heart” of mask, melt spraying cloth mainly USES polypropylene as the main material, the fiber diameter can reach 1 ~ 5 micron. The microfiber with unique capillary structure increases the number and surface area of fiber per unit area, so that the melt spray cloth has good filtering, shielding, insulation and oil absorption. Melt-blown fabric can be used for air, liquid filtration materials, isolation materials, absorption materials, mask materials,warm materials, oil absorption materials and wiping cloth and other fields.
Equipment List
| NO | ITEM | QTY |
|---|---|---|
| 1 | Automatic material dosing system | 1 set |
| 2 | Suction device | 1 set |
| 3 | Single Screw extruder | 1 set |
| 4 | Screen changer | 1 set |
| 5 | Gear pump | 1 set |
| 6 | Melt pipe | 1 set |
| 7 | Combined melt-out die head | 1 set |
| 8 | Hot-air system | 1 set |
| 9 | Air heater | 1 set |
| 10 | Suction fan | 1 set |
| 11 | Connecting duct | 1 set |
| 12 | Receive net | 1 set |
| 13 | Automatic slitting and rewinding machine | 1 set |
| 14 | Electric control system | 1 set |
Models & Specifications
| Model # | Daily Output | Product Width |
|---|---|---|
| SJ65 | 250-300kg/day | 650mm |
| SJ75 | 350-400kg/day | 800mm |
| SJ90 | 1200-1500kg/day | 1600mm |
| SJ120 | 2500kg/day | 2400mm |
Additional Images
Place An Order
The general lead time for all single-piece, standard equipment orders is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend heavily on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.
Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.
