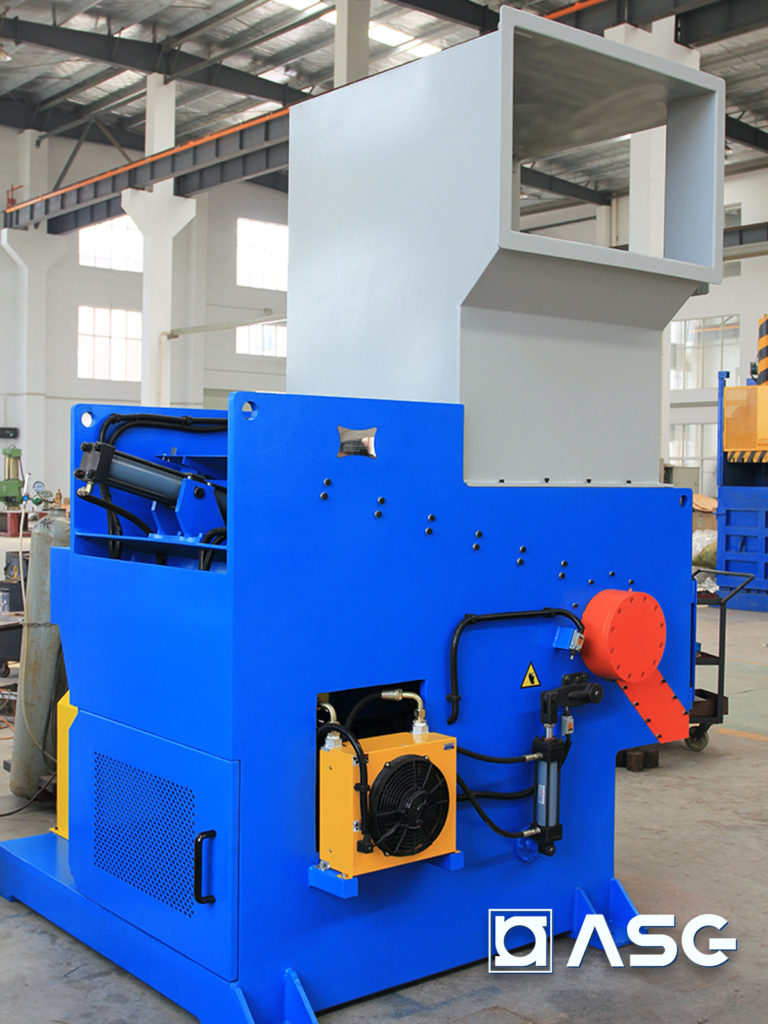

An effective plastic shredder machine for processing large pieces of rigid plastics such as plastic lumps, purge from extruders, entire sheet rolls, and more.
FEATURES
- Continuous feeding with high shredding efficiency.
- Movable hopper allows jam-free shredding of rigid plastics.
- The rotor is specially customized with large rotating diameter to maximize shredding contact surface whereby improving productivity.
- Transmission parts are connected by coupling which reduces vibration and protects the main shaft and reducer from damage by force.
- Stationary knives are are placed on the top and bottom or the main shaft which effectively cuts the rigid plastic material without warping the main shaft.
- PLC self-programming electrical control system is equipped with functions such as start, stop, forward rotation and automatic overload protection. This fully automated plastic shredder ensures a safe and stable work environment.
TECHNICAL SPECIFICATIONS
| Model # | Rotor Diameter | Number of Rotary Blades | Rotating Speed | Motor Power | Approx. Output |
| DS-800 | ⌀275 mm | 30 pcs | 82 rpm | 30 kw | 450 kg/hr |
| DS-1000 | ⌀315 mm | 39 pcs | 82 rpm | 37 kw | 800 kg/hr |
| DS-1200 | ⌀375 mm | 48 pcs | 82 rpm | 55 kw | 1200 kg/hr |
| DS-1500 | ⌀400 mm | 57 pcs | 82 rpm | 75 kw | 1500 kg/hr |
*Larger, more powerful models available based on your request.
ADDITIONAL IMAGES
WARRANTY
All recycling machines come with a 1 year limited warranty.
