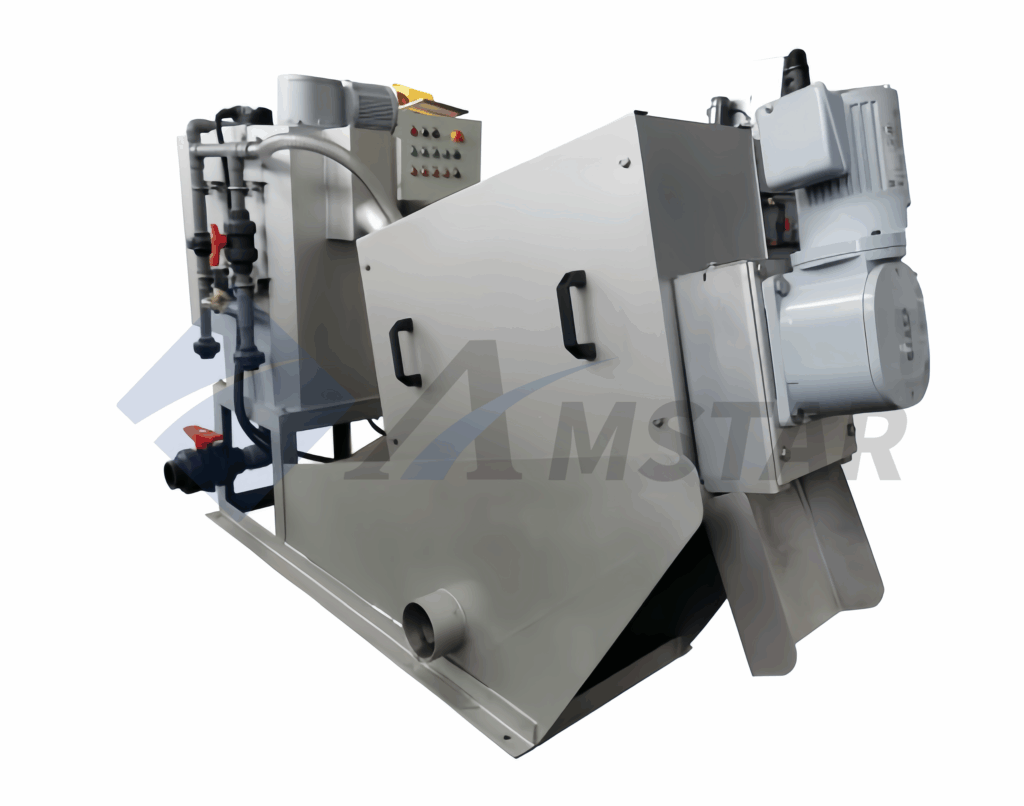

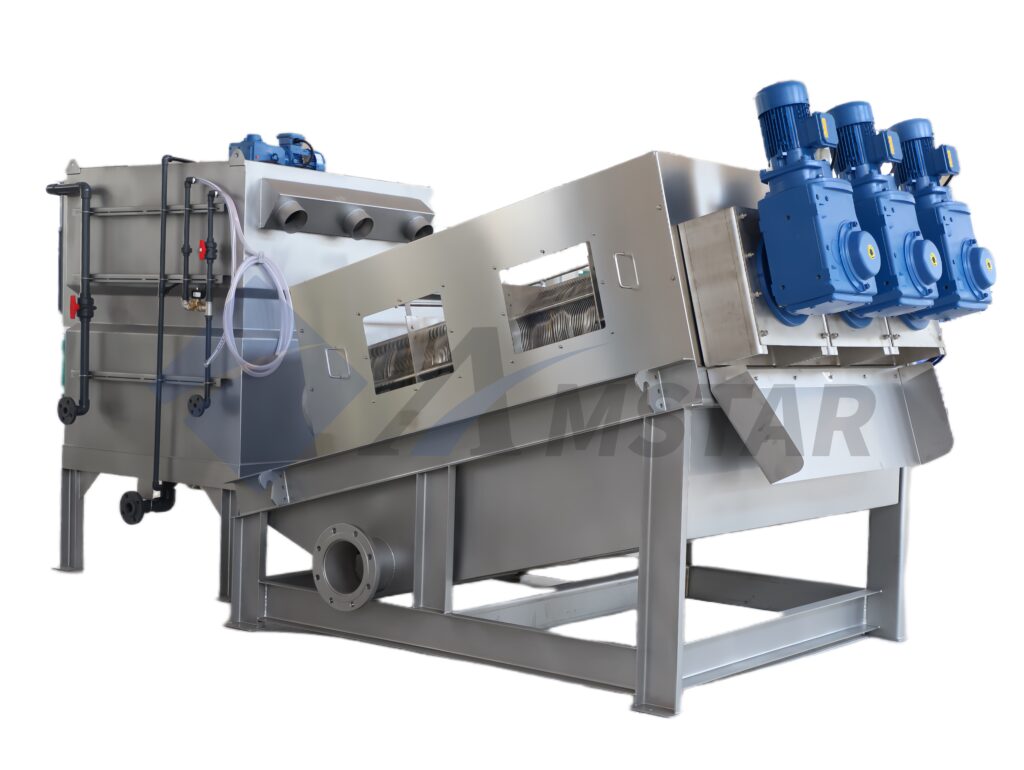

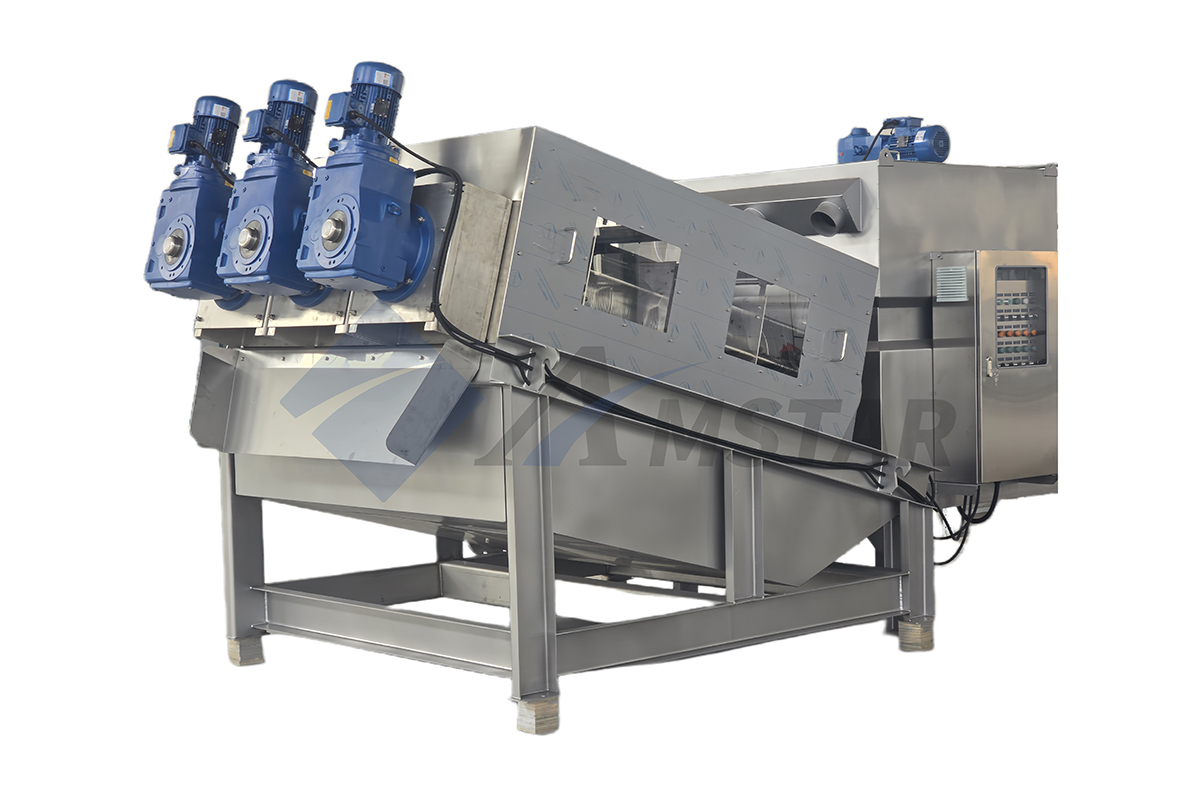

The Sludge Dewatering Machine, also known as the Screw Press Sludge Dewatering Machine, is an advanced solid-liquid separation equipment widely used in municipal wastewater treatment and various industrial applications, including petrochemical, light industry, chemical fiber, papermaking, pharmaceutical, and leather industries. This equipment efficiently reduces sludge volume and moisture content, thereby minimizing disposal costs and environmental impact.
KEY FEATURES
- Wide Applicability: Suitable for dewatering sludge from various industries.
- Non-Clogging Design: Unique moving and stationary ring filter structure prevents clogging.
- Continuous Automatic Operation: Capable of 24-hour unattended continuous operation.
- Cost-Effective: Integrated design with a compact structure significantly reduces operating costs.
- Space-Saving: Small footprint reduces civil engineering investment.
- Durable Construction: Main body constructed from stainless steel, ensuring long service life.
TECHNICAL SPECIFICATIONS
| Model | Capacity (kg-DS/h) | Screw Diameter × QTY | Power (kW) |
| DW-131 | 4~14 | φ130×1 | 0.4 |
| DW-201 | 8~20 | φ200×1 | 0.6 |
| DW-202 | 16~40 | φ200×2 | 0.94 |

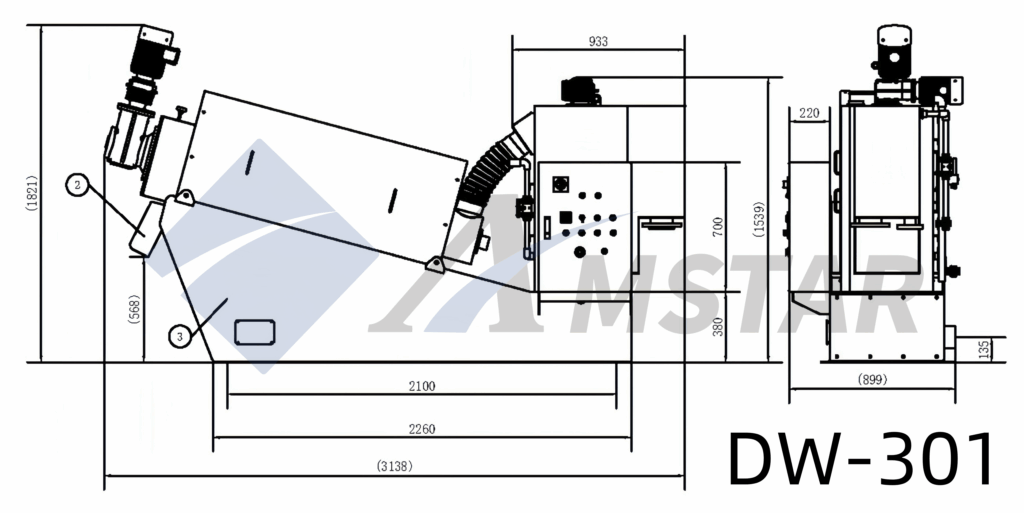

| DW-301 | 20~70 | φ300×1 | 0.95 |
| DW-302 | 40~140 | φ300×2 | 1.65 |
| DW-351 | 40~120 | φ350×1 | 1.65 |
| DW-352 | 80~240 | φ350×2 | 2.75 |
| DW-353 | 120~360 | φ350×3 | 4.05 |
| DW-401 | 68~160 | φ400×1 | 1.65 |
| DW-402 | 135~320 | φ400×2 | 2.75 |
| DW-403 | 200~480 | φ400×3 | 4.05 |
| DW-404 | 265~640 | φ400×4 | 5.5 |
Note: Capacity varies based on sludge characteristics
TYPICAL APPLICATIONS
- 🏭 Municipal sewage treatment plants
- 🍲 Food and beverage processing
- 🛢 Petrochemical refineries
- 📄 Paper and pulp industry
- 💊 Pharmaceutical factories
- 👞 Leather and tanning industry
WARRANTY
All recycling machines come with a 1 year limited warranty.
