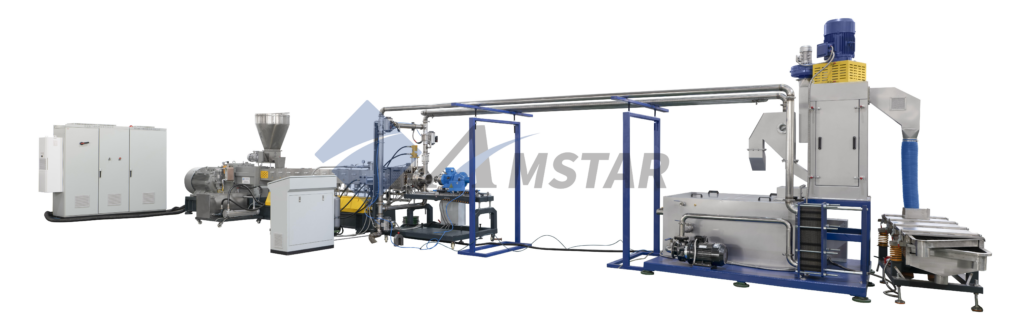

Ideal for PET Bottle Flake Recycling
This pelletizing system is specially developed for processing PET flakes, especially when the input material is not fully clean. It uses a water flushing strand method, where the strands are pulled into the pelletizer by the water flow—avoiding strand breakage during screen changes and reducing material loss.
Key Features:
- Water Flushing Cooling Tank: Quickly cools the strands and helps move them smoothly into the pelletizer, improving overall efficiency.
- Stainless Steel Pelletizer: Handles in-water cutting with strong corrosion resistance, ideal for PET material.
- Effective Moisture Removal: After pelletizing, the system connects directly to a centrifugal dryer to remove surface water and improve drying.
- Frequent Screen Changes: Includes a large-area cartridge screen changer to handle dirty PET flakes.
Applications:
Perfect for recycling PET beverage bottle flakes into uniform pellets for reuse in production.
| Model | Power | Strips QTY | Capacity |
| AMFP100 | 2.2KW | 6 | 70-100kg/hr |
| AMFP300 | 4KW | 15 | 100-300kg/hr |
| AMFP500 | 7.5KW | 25 | 300-500kg/hr |
| AMFP1000 | 15KW | 42 | 500-1000kg/hr |

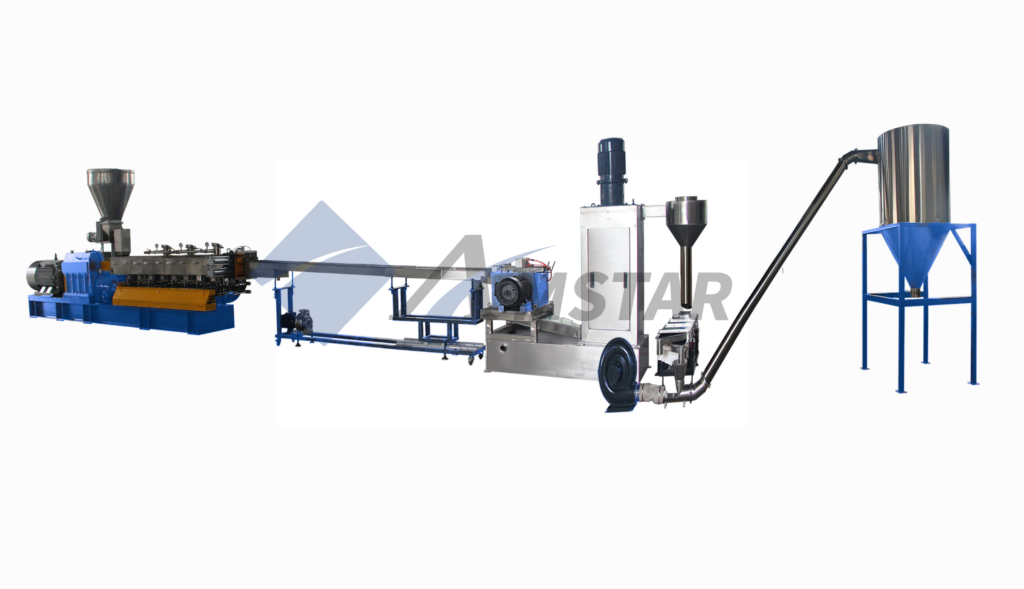

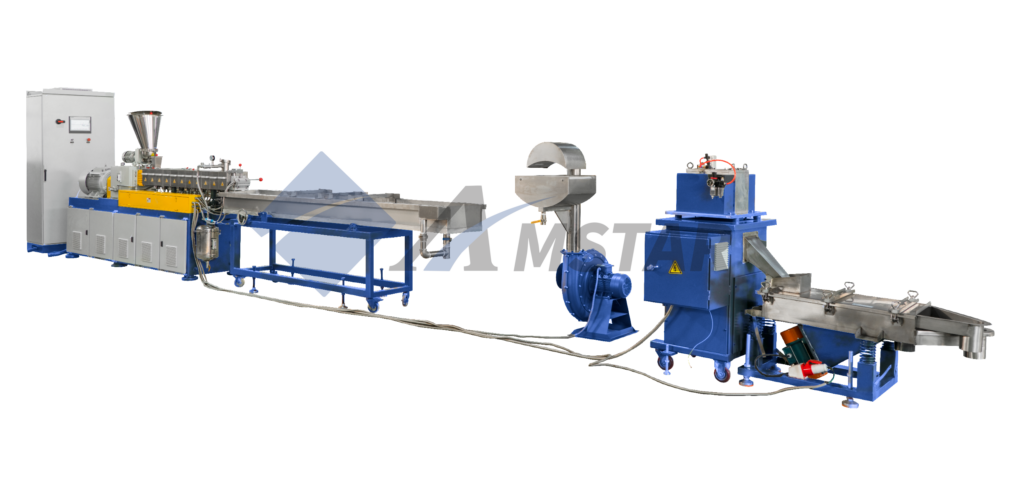

Water-cooling strands pelletizing line
Versatile Granulation for a Wide Range of Polymers
This pelletizing system is ideal for processing most types of polymers, including color masterbatches, engineering plastics, and filler compounds. It’s especially suitable for modified plastics that require high temperature resistance or specific performance properties.
Why Choose This System?
- Simple Setup: Easy to operate, maintain, and clean—making it ideal for frequent material changes.
- Low Operator Requirement: Designed for efficient use without the need for highly skilled labor.
- Modular Components: Includes strand die head, cooling water tank, air knife or blow dryer, pelletizer, and vibrating screen.
Applications:
- Reinforced Plastics: Handles glass fiber or carbon fiber filled materials like PP, PA, ABS, PBT, etc.
- Polymer Blends: Supports combinations like PC+ABS, PA+SBS, and more.
- Filler Compounds: Suitable for materials with CaCO₃, carbon black, or TiO₂.
- Cable Materials: Processes cable insulation and sheathing compounds including LDPE, HDPE, and cross-linked types.
- Specialty Masterbatches: Compatible with flame retardants, color concentrates, biodegradable additives, and more.
- Functional Additives: Used for anti-static, anti-bacterial, and other performance-enhancing formulations.
| Model | Power | Strips QTY | Capacity |
| AMWP50 | 1.5KW | 4 | 10-50kg/hr |
| AMWP100 | 2.2KW | 6 | 70-100kg/hr |
| AMWP300 | 4KW | 15 | 100-300kg/hr |
| AMWP500 | 7.5KW | 25 | 300-500kg/hr |
| AMWP1000 | 15KW | 42 | 500-1000kg/hr |
Under water pelletizing line
High-Quality Pellet Production for Polymers and Thermoplastics
This system is designed to produce consistent, high-quality plastic pellets by cutting molten material directly in water. The underwater cutting process helps maintain pellet shape and prevents oxidation, which is critical for sensitive or high-performance polymers.
Key Features:
- Underwater Cutting: Molten plastic is cut into uniform pellets immediately in water, ensuring smooth shape and stable quality.
- Fully Enclosed Process: No air exposure during cutting, which avoids rapid cooling and material degradation.
- Highly Automated: Equipped with melt pump, filter, start-up valve, die face cutter, water circulation, and drying units for continuous operation.
Typical Applications:
Ideal for a wide range of thermoplastics and polymers requiring precise pellet size and appearance, especially in high-throughput production environments.
| Model | Hole QTY | Blade QTY | Capacity |
| AMUP30 | 8-10 | 4-6 | 50-300kg/hr |
| AMUP50 | 20-30 | 6-8 | 200-700kg/hr |
| AMUP100 | 40-80 | 8-12 | 2T/hr |
| AMUP200 | 100-160 | 10-16 | 2-6T/hr |

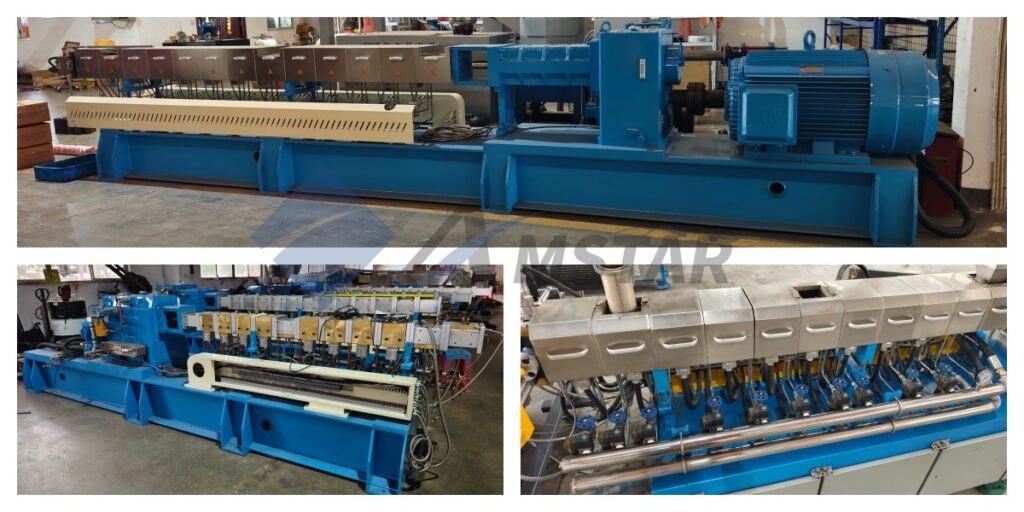

Actual pictures

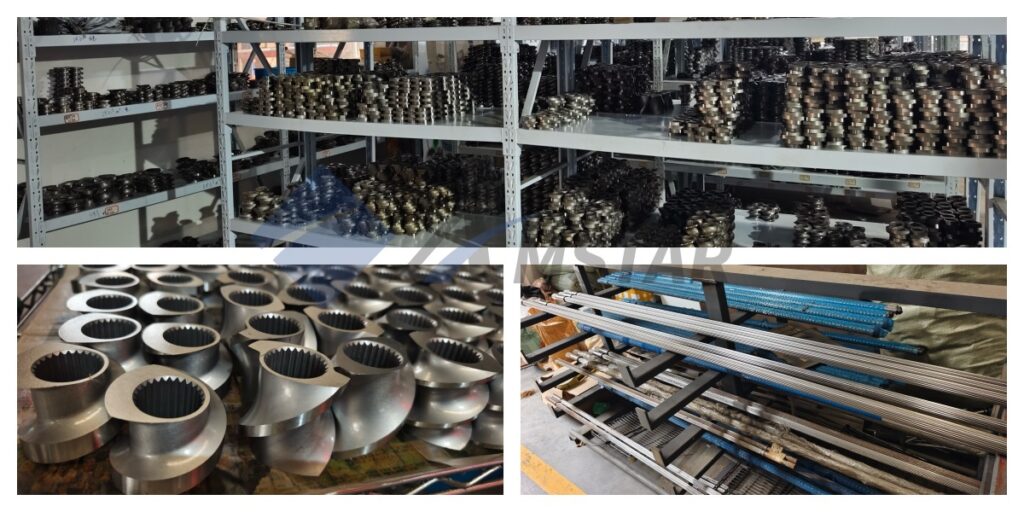

Spare Parts & After-Sales Support
We offer a full range of spare parts for our Flowing Water Cooling Pelletizing System, Water-Cooling Strands Pelletizer, and Underwater Pelletizing System. All critical components—such as blades, filters, die heads, seals, and wear parts—are in stock and ready for prompt shipment.
Our Support Includes:
- Fast Delivery: Spare parts available for immediate dispatch to minimize downtime.
- Reliable After-Sales Service: Technical support and troubleshooting assistance provided by experienced engineers.
- Long-Term Supply: Continued support for consumables and critical parts over the full lifecycle of your equipment.
Whether you need routine maintenance items or emergency replacements, we ensure your production keeps running smoothly.
